WebSocket Server

The RTFMv2 Console includes a powerful WebSocket server that enables remote command execution, real-time collaboration, and file transfer capabilities. This allows multiple clients to connect, join sessions, and execute commands remotely.

Overview

RTFMv2 provides two separate WebSocket servers for different use cases:

1. Main WebSocket Server (WSS - Secure)

Protocol: WSS (WebSocket Secure with TLS)
Default Port: 5001
Authentication: License-based challenge-response
Purpose: Secure remote client connections
Features: Full command execution, file transfer, session management

2. Node-RED WebSocket Server (WS - Unsecured)

Protocol: WS (Unencrypted WebSocket)
Default Port: 5000
Authentication: None (internal use)
Purpose: Node-RED visual workflow integration
Features: Command execution from Node-RED flows
Availability: Commercial edition only

This page focuses on the Main WebSocket Server (WSS).

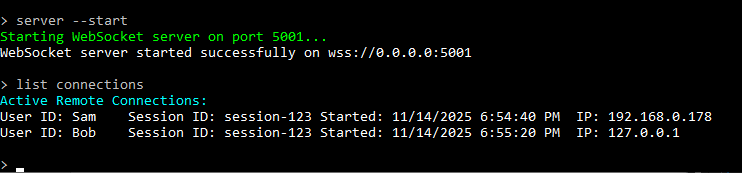

Starting the WebSocket Server

From Interactive Console

>> server --start
WebSocket server started on wss://0.0.0.0:5001

Start on Custom Port:

>> server --start --port 8080
WebSocket server started on wss://0.0.0.0:8080

Stopping the Server

>> server --stop
WebSocket server stopped

Checking Active Connections

>> list --connections
Active WebSocket Connections:
  - User: alice, Session: pentest-123, IP: 192.168.1.50, Connected: 2024-11-14 10:30:00 UTC
  - User: bob, Session: pentest-123, IP: 192.168.1.51, Connected: 2024-11-14 10:32:15 UTC

Server Configuration

Automatic TLS Certificate Generation

The WebSocket server automatically generates and manages TLS certificates:

Certificate Details: - Location: ./certs/server.pfx - Type: Self-signed X509 certificate - Algorithm: ECDSA P-256 - Validity: 1 year - Auto-Renewal: 30 days before expiration - Password: Derived from license signature using HKDF-SHA256

Subject Alternative Names (SANs): - localhost - Machine hostname - 127.0.0.1 - ::1 (IPv6 loopback)

Security: - TLS 1.2 and TLS 1.3 enabled - Enhanced Key Usage: Server Authentication - Password derived cryptographically from license

Server Settings

Setting	Value
Default Port	5001
Protocol	WSS (WebSocket Secure)
Bind Address	0.0.0.0 (all interfaces)
Max Message Size	1 MB (1,000,000 bytes)
File Transfer Message Size	Unlimited (chunked)
Library	Fleck WebSocket Server

Authentication

The WebSocket server uses a secure challenge-response authentication mechanism based on your RTFMv2 license.

Authentication Flow

1. Client connects to wss://server:5001
   ↓
2. Server sends challenge:
   {
     "type": "challenge",
     "nonce": "randomBase64String=="
   }
   ↓
3. Client derives authentication key from license:
   key = HKDF-SHA256(
     ikm: license.Signature,
     salt: SHA256(Customer),
     info: "rtfm-auth-ws-v1",
     length: 32 bytes
   )
   ↓
4. Client computes proof:
   proof = HMAC-SHA256(key, nonce)
   ↓
5. Client sends authentication:
   {
     "type": "auth",
     "license": {
       "Customer": "CompanyName",
       "ExpiresUtc": "2025-12-31T23:59:59Z",
       "Signature": "base64Signature=="
     },
     "nonce": "sameNonceFromChallenge",
     "proof": "computedHMAC==",
     "userId": "username"
   }
   ↓
6. Server validates:
   - Nonce matches
   - License not expired
   - HMAC proof is correct
   ↓
7. Server responds:
   {
     "type": "auth-ok",
     "userId": "username"
   }
   ✓ Client is now authenticated

Security Features

One-Time Nonce: Prevents replay attacks
License Validation: Ensures valid RTFMv2 license
HMAC-SHA256: Cryptographic proof of possession
HKDF Key Derivation: Secure key generation from license
Constant-Time Comparison: Prevents timing attacks
Rate Limiting: 5 bad message types → disconnect

Connection Management

Session Rooms

Clients can join session rooms to collaborate and share command output.

Join a Session:

{
  "type": "join",
  "sessionId": "pentest-123"
}

Join Default Shared Session:

{
  "type": "join",
  "sessionId": "Shared"
}

Leave a Session:

{
  "type": "leave"
}

Connection State

The server tracks the following for each connection:

WebSocket connection object
Authentication status (true/false)
User ID
Session ID
Connection timestamp
Client IP address
Bad message counter (rate limiting)

Multiple Clients

Multiple clients can join the same session
Commands executed by one client are broadcast to all clients in the session
Results are shared in real-time
Each client maintains independent authentication

Message Types and Protocol

Message Format

All messages are JSON with the following structure:

{
  "type": "messageType",
  "payload": { ... },
  "sessionId": "optional-session-id",
  "from": "optional-user-id"
}

Available Message Types

Type	Direction	Description
`challenge`	Server → Client	Authentication challenge with nonce
`auth`	Client → Server	Authentication response with proof
`auth-ok`	Server → Client	Authentication successful
`error`	Server → Client	Error message
`join`	Client → Server	Join session room
`joined`	Server → Client	Successfully joined session
`leave`	Client → Server	Leave current session
`left`	Server → Client	Successfully left session
`query`	Client ↔ Server	Execute command or receive result
`result`	Client → Server	Broadcast result to session
`heartbeat`	Client → Server	Keep-alive ping
`file-upload-init`	Server → Client	Initialize file transfer
`file-upload-chunk`	Server → Client	File data chunk
`file-upload-complete`	Server → Client	File transfer complete
`file-download-request`	Client → Server	Request file download
`file-transfer-error`	Server ↔ Client	File transfer error
`file-transfer-progress`	Server → Client	Transfer progress update

Command Execution

Executing Commands Remotely

Send a Command:

{
  "type": "query",
  "sessionId": "pentest-123",
  "from": "alice",
  "payload": {
    "cmd": "list --session"
  }
}

Server Response (Broadcast to All Session Members):

{
  "type": "query",
  "sessionId": "pentest-123",
  "from": "alice",
  "payload": "\nSession: pentest-123\nHost: 192.168.1.0/24\n..."
}

Shell Mode Integration

The WebSocket server integrates with the console's shell mode, maintaining shell state per session:

Example: Running Shell Commands

{
  "type": "query",
  "sessionId": "pentest-123",
  "from": "alice",
  "payload": {
    "cmd": "shell --cmd 'ls -la' --session-id 'pentest-123'"
  }
}

Shell State Persistence: - Working directory is tracked per session ID - cd commands persist across multiple WebSocket commands - Each session maintains independent shell state

Command Examples

List Available Commands:

{
  "type": "query",
  "payload": { "cmd": "help" }
}

Run Custom Shell Command:

{
  "type": "query",
  "payload": { "cmd": "run --custom 'nmap -sV 192.168.1.1'" }
}

Execute Template Attack:

{
  "type": "query",
  "payload": { "cmd": "template nikto --ip 192.168.1.100" }
}

Get Host Information:

{
  "type": "query",
  "payload": { "cmd": "hostinfo --host 192.168.1.50" }
}

File Transfer

The WebSocket server supports robust file transfer with chunking, hashing, and error recovery.

File Transfer Features

Chunked Transfer: Files split into 256 KB chunks
SHA-256 Validation: Entire file and each chunk validated
Progress Tracking: Real-time progress updates
Error Recovery: Detailed error reporting
Large File Support: No practical size limit
Atomic Operations: Temporary staging with atomic move on completion

Downloading Files from Server

1. Request File:

{
  "type": "query",
  "payload": { "cmd": "file --copy passwords.txt" }
}

2. Server Sends Initialization:

{
  "type": "file-upload-init",
  "payload": {
    "fileName": "passwords.txt",
    "fileSize": 524288,
    "totalChunks": 2,
    "sha256Hash": "abcd1234...base64hash",
    "sessionId": "pentest-123",
    "transferId": "unique-guid-12345"
  }
}

3. Server Sends Chunks:

{
  "type": "file-upload-chunk",
  "payload": {
    "fileName": "passwords.txt",
    "transferId": "unique-guid-12345",
    "chunkIndex": 0,
    "chunkData": "base64EncodedData...",
    "chunkHash": "sha256OfThisChunk...",
    "sessionId": "pentest-123"
  }
}

4. Server Sends Completion:

{
  "type": "file-upload-complete",
  "payload": {
    "fileName": "passwords.txt",
    "transferId": "unique-guid-12345",
    "success": true,
    "finalHash": "abcd1234...base64hash",
    "message": "File sent successfully"
  }
}

5. Client Validates: - Reassemble chunks in order - Compute SHA-256 of complete file - Compare with finalHash - Save to disk if valid

File Transfer Configuration

Setting	Value
Chunk Size	256 KB (262,144 bytes)
Timeout	30 seconds per chunk
Hash Algorithm	SHA-256
Encoding	Base64
Storage	`.transfers/` directory (staging)
Validation	File hash + per-chunk hash

File Path Resolution

The server resolves file paths in this order:

Absolute path: If path is absolute, use as-is
Relative to LootDir: Check in session's loot directory
Relative to working directory: Check in current shell working directory

Error Handling

File Transfer Error Message:

{
  "type": "file-transfer-error",
  "payload": {
    "fileName": "passwords.txt",
    "transferId": "unique-guid-12345",
    "errorMessage": "File not found",
    "errorCode": "FILE_NOT_FOUND"
  }
}

Common Error Codes: - FILE_NOT_FOUND: Requested file doesn't exist - CHUNK_HASH_MISMATCH: Chunk integrity check failed - FINAL_HASH_MISMATCH: Complete file hash doesn't match - TIMEOUT: Chunk transfer timed out - PERMISSION_DENIED: Insufficient permissions

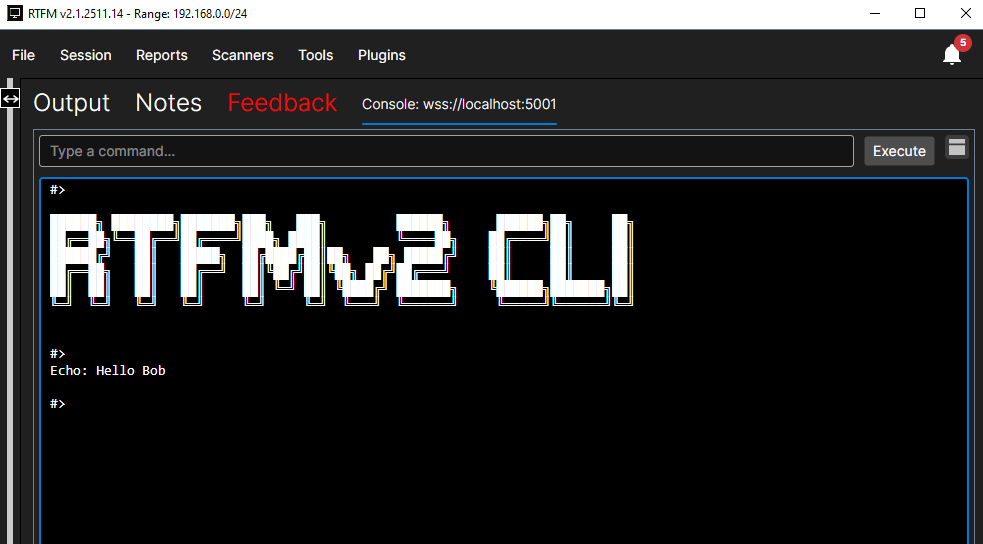

Desktop Client Integration

The RTFMv2 desktop client includes a built-in WebSocket client interface.

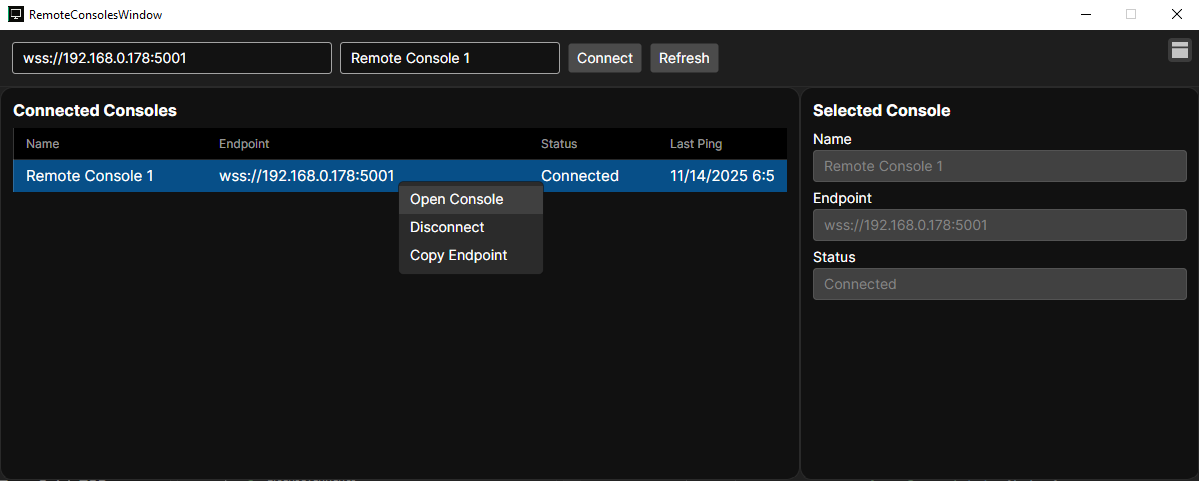

Connecting from Desktop Client

Open the desktop client
Navigate to Remote Consoles window
Enter WebSocket URL: wss://localhost:5001
Click Connect
Authentication happens automatically using your license
Join a session to start collaborating

Features in Desktop Client

Real-time command output from all session members
File transfer with progress bars
Connection status indicator
Multiple concurrent connections
Session switching

Security Best Practices

1. Network Security

Firewall Rules:

# Allow only specific IPs to connect
iptables -A INPUT -p tcp --dport 5001 -s 192.168.1.0/24 -j ACCEPT
iptables -A INPUT -p tcp --dport 5001 -j DROP

Production Deployment: - Use reverse proxy (nginx, Apache) for additional security - Implement IP whitelisting - Consider VPN for remote access - Monitor connection logs

2. Certificate Management

Production Certificates: - Replace self-signed certificates with CA-signed certificates - Store certificates securely with restricted permissions - Rotate certificates regularly - Monitor expiration dates

Custom Certificate:

# Place your certificate in:
./certs/server.pfx

# Server will use it instead of generating self-signed

3. License Protection

Store license files securely
Restrict file permissions on license files
Don't commit licenses to version control
Audit license usage regularly

4. Connection Monitoring

# Regular monitoring
>> list --connections

# Look for:
# - Unexpected users
# - Unknown IP addresses
# - Excessive connections
# - Unusual connection times

5. Session Isolation

Use unique session IDs per engagement
Don't use the default "Shared" session for sensitive work
Regularly clean up old sessions
Audit session membership

Troubleshooting

Connection Issues

Problem: Client cannot connect to WebSocket server

Solutions: 1. Verify server is running:

>> list --connections

Check port availability:

netstat -an | findstr 5001

Verify firewall allows port 5001
Test with localhost first: wss://localhost:5001
Check certificate is valid (not expired)

Authentication Failures

Problem: Client receives authentication error

Solutions:

Verify license is valid and not expired
Check license signature matches
Ensure nonce is passed correctly
Verify HMAC computation
Check for clock skew between client and server

Certificate Errors

Problem: TLS certificate validation fails

Solutions:

Development: Set trustAllCertsForDev: true in client
Production: Install CA-signed certificate
Add self-signed certificate to trusted store:

# Windows
certutil -addstore -f "Root" .\certs\server.pfx

# Linux
sudo cp server.crt /usr/local/share/ca-certificates/
sudo update-ca-certificates

File Transfer Issues

Problem: File transfer fails or stalls

Solutions:

Check file permissions on server
Verify sufficient disk space
Check network stability
Review chunk timeout (30 seconds default)
Examine transfer error messages
Check .transfers/ directory for partial files

Performance Issues

Problem: Slow command execution or high latency

Solutions:

Check network latency between client and server
Reduce message size if possible
Use compression for large outputs
Limit number of concurrent connections
Monitor server CPU and memory usage
Consider local execution for performance-critical tasks

Advanced Usage

Custom Message Handling

For advanced integrations, you can send custom message types:

// Send custom message
var message = new {
    type = "custom",
    payload = new {
        action = "customAction",
        data = "customData"
    }
};
await client.SendAsync(JsonSerializer.Serialize(message));

Programmatic Session Management

// Automated session workflow
await client.ConnectAsync();
await client.JoinAsync($"auto-session-{DateTime.UtcNow:yyyyMMdd}");
await client.SendQueryAsync(new { cmd = "new --name AutoTest --host 192.168.1.1 --pass SecurePass" });
await client.SendQueryAsync(new { cmd = "run --custom 'nmap -sV 192.168.1.1'" });
await client.RequestFileAsync("scan-results.xml");
await client.LeaveAsync();
await client.DisconnectAsync();

Integration with CI/CD

# Example: GitLab CI
test:
  script:
    - RTFMv2.Console.exe server --start --port 5001 &
    - sleep 5
    - dotnet run --project TestClient -- wss://localhost:5001
    - RTFMv2.Console.exe server --stop

Comparison: Main WSS vs Node-RED WS

Feature	Main WSS Server	Node-RED WS Server
Port	5001 (configurable)	5000 (fixed)
Protocol	WSS (encrypted)	WS (unencrypted)
Authentication	Challenge-response	None
License Required	Yes	Yes (Commercial)
File Transfer	Full support	Not supported
Session Management	Full support	Basic
Use Case	Remote clients	Node-RED integration
Client Library	RtfmWsClient	WebSocket nodes
Message Format	Structured JSON	Instruction payload

API Reference Summary

Server Commands

server --start [--port <port>]    # Start WebSocket server
server --stop                      # Stop WebSocket server
list --connections                 # Show active connections

Message Types Quick Reference

Authentication: - challenge → auth → auth-ok

Session: - join → joined - leave → left

Commands: - query (send command) - result (broadcast result)

File Transfer: - file-upload-init → file-upload-chunk (multiple) → file-upload-complete - file-download-request - file-transfer-error - file-transfer-progress

Maintenance: - heartbeat - error

Next Steps

Learn about Console Commands you can execute remotely
Explore Node-RED Integration for visual automation
Review Lua Scripting for extending functionality
Return to Console Overview

Additional Resources

Client Library: RTFMv2.Core.Connection.RtfmWsClient
Server Implementation: RTFMv2.Console.Server
File Transfer: RTFMv2.Core.FileTransfer.FileTransferManager
Desktop Client: Remote Consoles window in RTFMv2 desktop application
